Place of Origin: | Quanzhou, China |
Brand Name: | JDF |
Certification: | ISO9001:2008 |
Model Number: | pc2000-8 arm |
Minimum Order Quantity: | 1 |
---|---|
Packaging Details: | plywood box |
Delivery Time: | 15 days |
Payment Terms: | 30% advance payment, 70% before shipment |
Supply Ability: | 10000 |
MOQ: | 1 PIECES | WARRANTY: | 6 MONTH |
---|---|---|---|
Struction: | Piston Cylinder | Body Material: | Steel |
Rod: | Hard Chrome Piston Rod | Tube: | Precision Honed Steel |
Seal: | NOK | Part Number: | 707-01-0K770 |

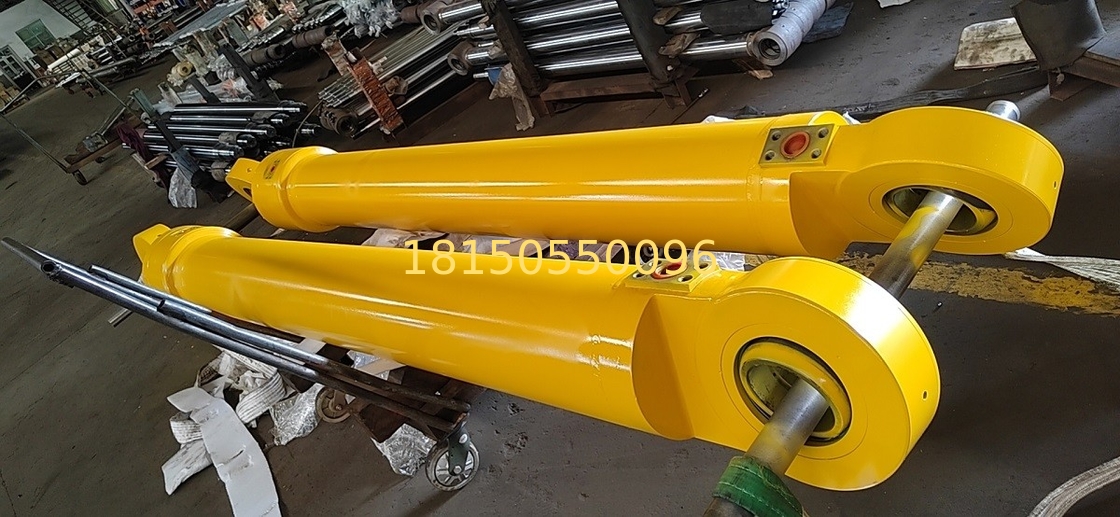

pc2000-8 arm hydraulic cylinder ass'y LH
part number 707-01-0K770
For backhoe machine
Komatsu parts
Komatsu excavator spare parts
high quality can use for a long period of time, just relax.
Komatsu | ||
pc40-5 | pc160 | pc350-6-7 |
pc55U-2 | pc200-1-2-3-5-6-7-8 | pc360-7 |
pc60-5-6-7 | pc210-6-7 | pc400-3-5-6-8 |
pc100-3-5-6 | pc220-1-2-3-5-7-8 | pc450-6 |
pc120-3-5-6 | pc270-7 | pc600-6 |
pc150-5 | pc300-3-5-6-7 | pc1250 |
PC2000-8 |
Pos. | Part No | Parts name | Comments |
G-1. | 707-01-XP700 | CYLINDER GROUP,L.H. (FINAL COATING) Komatsu China | |
["SN: 20001-UP"] | |||
==================== | |||
|$$2. | |||
707-01-0K750 | CYLINDER ASS'Y,L.H. Komatsu | 2272 kg. | |
["SN: 20001-UP"] analogs:["707010K751", "701010K750"] |$3. | |||
1. | 707-13-30130 | CYLINDER Komatsu | 0.000 kg. |
["SN: 20001-UP"] | |||
2. | 707-58-20270 | ROD Komatsu China | |
["SN: 20001-UP"] analogs:["R7075820270"] | |||
3. | 707-46-18050 | BUSHING Komatsu | 33.79 kg. |
["SN: 20001-UP"] | |||
4. | 707-46-18020 | BUSHING Komatsu | 1.811 kg. |
["SN: 20001-UP"] | |||
5. | 707-77-18010 | SEAL (KIT) Komatsu | 0.08 kg. |
["SN: 20001-UP"] | |||
6. | 01253-63650 | BOLT Komatsu | 1.252 kg. |
["SN: 20001-UP"] | |||
7. | 707-41-10270 | WASHER Komatsu | 0.09 kg. |
["SN: 20001-UP"] | |||
8. | 07179-15216 | RING Komatsu | 0.079 kg. |
["SN: 20001-UP"] | |||
9. | 581-63-92670 | SEAL (KIT) Komatsu | 0.12 kg. |
["SN: 20001-UP"] | |||
10. | 707-27-30090 | HEAD Komatsu China | |
["SN: 20001-UP"] | |||
11. | 707-51-20080 | PACKING,ROD (KIT) Komatsu China | |
["SN: 20001-UP"] | |||
12. | 707-51-20850 | RING,BUFFER (KIT) Komatsu China | |
["SN: 20001-UP"] | |||
13. | 707-52-91761 | BUSHING Komatsu | 0.962 kg. |
["SN: 20001-UP"] | |||
14. | 707-75-20040 | RING,SNAP Komatsu | 0.41 kg. |
["SN: 20001-UP"] | |||
15. | 07000-15300 | O-RING (KIT) Komatsu China | 0.03 kg. |
["SN: 20001-UP"] analogs:["0700005300"] | |||
16. | 07001-05300 | RING,BACK-UP (KIT) Komatsu | 0.038 kg. |
["SN: 20001-UP"] | |||
19. | 707-71-35070 | COLLAR Komatsu | 0.000 kg. |
["SN: 20001-UP"] | |||
20. | 707-71-62000 | PLUNGER Komatsu | 0.000 kg. |
["SN: 20001-UP"] | |||
21. | 07000-B5185 | O-RING (KIT) Komatsu | 0.02 kg. |
["SN: 20001-UP"] | |||
22. | 07001-05185 | RING,BACK-UP (KIT) Komatsu China | |
["SN: 20001-UP"] analogs:["5696342190", "7901014640"] | |||
23. | 707-36-30110 | PISTON Komatsu | 48 kg. |
["SN: 20001-UP"] | |||
24. | 707-44-30010 | RING,PISTON (KIT) Komatsu China | |
["SN: 20001-UP"] | |||
25. | 707-39-30900 | RING,WEAR (KIT) Komatsu China | |
["SN: 20001-UP"] | |||
26. | 707-44-30910 | RING Komatsu | 0.355 kg. |
["SN: 20001-UP"] | |||
27. | 01310-01640 | SCREW Komatsu | 0.047 kg. |
["SN: 20001-UP"] | |||
28 | 707-86-14230 | TUBE,L.H. Komatsu China | |
["SN: 20001-UP"] | |||
29 | 707-86-15010 | TUBE,L.H. Komatsu China | |
["SN: 20001-UP"] | |||
30 | 07000-13048 | O-RING (KIT) Komatsu China | 0.01 kg. |
["SN: 20001-UP"] analogs:["0700003048", "4243515240"] | |||
31 | 07000-12060 | O-RING (KIT) Komatsu China | 0.002 kg. |
["SN: 20001-UP"] analogs:["0700002060"] | |||
32 | 01010-81450 | BOLT Komatsu | 0.085 kg. |
["SN: 20001-UP"] analogs:["0101031450", "0101051450", "0101061450"] | |||
33 | 01643-31445 | WASHER Komatsu | 0.019 kg. |
["SN: 20001-UP"] analogs:["0164301432"] | |||
34 | 01010-81865 | BOLT Komatsu China | 0.167 kg. |
["SN: 20001-UP"] analogs:["0101031865", "0101051865", "0101061865"] | |||
35 | 01643-31845 | WASHER Komatsu China | 0.02 kg. |
["SN: 20001-UP"] analogs:["0164321845", "R0164331845"] | |||
36 | 707-88-28690 | BRACKET Komatsu China | |
["SN: 20001-UP"] | |||
37 | 707-88-26220 | BAND Komatsu China | |
["SN: 20001-UP"] | |||
38 | 07372-21250 | BOLT Komatsu | 0.055 kg. |
["SN: 20001-UP"] analogs:["0737201250"] | |||
39 | 01643-31232 | WASHER Komatsu | 0.027 kg. |
["SN: 20001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | |||
40 | 707-88-28610 | BRACKET Komatsu China | |
["SN: 20001-UP"] | |||
41 | 01010-81250 | BOLT Komatsu | 0.061 kg. |
["SN: 20001-UP"] analogs:["0101051250"] | |||
43 | 176-61-41330 | CLAMP Komatsu | 0.467 kg. |
["SN: 20001-UP"] | |||
44 | 01010-81840 | BOLT Komatsu | 0.13 kg. |
["SN: 20001-UP"] analogs:["0101031840", "0101051840", "0101061840"] | |||
46 | 707-88-37410 | BRACKET Komatsu China | |
["SN: 20001-UP"] | |||
47 | 01010-81675 | BOLT Komatsu | 0.15 kg. |
["SN: 20001-UP"] analogs:["0101051675", "0101031675", "0101061675"] | |||
48 | 01643-31645 | WASHER Komatsu | 0.072 kg. |
["SN: 20001-UP"] analogs:["802170005", "0164301645"] | |||
49 | 707-88-33070 | CAP,(FOR SHIPPING) Komatsu China | |
["SN: 20001-UP"] | |||
50 | 07371-52080 | FLANGE,(FOR SHIPPING) Komatsu | 1.575 kg. |
["SN: 20001-UP"] | |||
53 | 707-88-33060 | CAP,(FOR SHIPPING) Komatsu China | |
["SN: 20001-UP"] | |||
54 | 07371-51470 | FLANGE,(FOR SHIPPING) Komatsu | 0.663 kg. |
["SN: 20001-UP"] | |||
55 | 01010-81455 | BOLT,(FOR SHIPPING) Komatsu | 0.091 kg. |
["SN: 20001-UP"] analogs:["0101061455"] | |||
KIT. | 707-99-96140 | SERVICE KIT Komatsu | 1.642 kg. |
Our quality control:
We focus on every part's quality and material:
Rod seal:
Superior quality named-brand seals improve a longer life and seal effect.
Tube:
skived&burnished or vertical honing tube assures the concentricity and straightness.
Rod:
Induction hardened prior to chrome plating enhances the surface hardness. Enhanced chrome plating improve corrosion resistence and anti-scratch performance.
Piston:High pressure piston sealing material.
Making cylinder that are worthy of your equipment.
You will be without worry, when the cylinder willinterchange completely with the originalon your equipment.
The cylinder that are worthy of your equipment mean higher work efficency and less downtime won't let you down.
JDF is completely in-house manufacturing by ourself, we have a big factory with 215000 square meters.
The machine include Skive Roller Burnishing Machines, Honing Machines, CNC Centers, Automatic welding machines, Grinders machine, Cylinder assembly& test benches, paining line.
