Place of Origin: | Quanzhou, China |
Brand Name: | JDF |
Certification: | ISO9001:2008 |
Model Number: | pc800SE-8 boom |
Minimum Order Quantity: | 1 |
---|---|
Packaging Details: | plywood box |
Delivery Time: | 1-15 DAYS |
Payment Terms: | 30% advance payment, 70% before shipment |
Supply Ability: | 10000 |
Part Number: | 707-G1-03560 | WARRANTY: | 1 YEAR |
---|---|---|---|
STOCK: | YES |

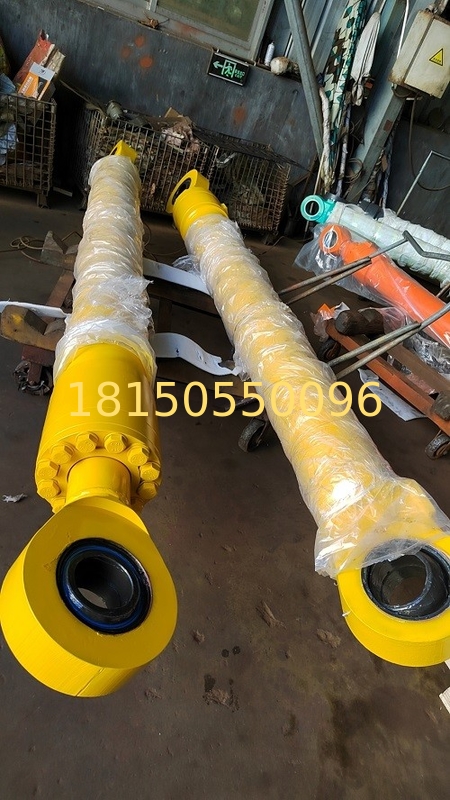

707-G1-03560 cylinder group LH
komatsu parts pPC800SE-8M0 boom cylinder LH
-40 degree use extreme cold terrain
boom cylinder
707-58-14740
707-13-20610
721-98-00920
arm cylinder
707-G1-03580
707-58-12950
721-13-18210
721-98-00930
bucket cylinder
707-G1-03610
707-58-16310
707-13-22610
721-98-01590
Our quality control:
We focus on every part's quality and material:
Rod seal:
Superior quality named-brand seals improve a longer life and seal effect.
Tube:
skived&burnished or vertical honing tube assures the concentricity and straightness.
Rod:
Induction hardened prior to chrome plating enhances the surface hardness. Enhanced chrome plating improve corrosion resistence and anti-scratch performance.
Piston:High pressure piston sealing material.
Making cylinder that are worthy of your equipment.
You will be without worry, when the cylinder will interchange completely with the originalon your equipment.
The cylinder that are worthy of your equipment mean higher work efficency and less downtime won't let you down.
JDF is completely in-house manufacturing by ourself, we have a big factory with 215000 square meters.
The machine include Skive Roller Burnishing Machines, Honing Machines, CNC Centers, Automatic welding machines, Grinders machine, Cylinder assembly& test benches, paining line.
707-01-XT832 | [1] | CYLINDER GROUP,L.H. (FINAL COATING) Komatsu China | ||
["SN: 52629-UP"] | ||||
G-2. | 707-01-XT842 | [1] | CYLINDER GROUP,R.H. (FINAL COATING) Komatsu China | |
["SN: 52629-UP"] | ||||
707-01-0H062 | [1] | CYLINDER Komatsu China | ||
["SN: 52629-UP"] |$5. | ||||
1. | 707-13-16861 | [1] | CYLINDER Komatsu | 0.000 kg. |
["SN: 50001-UP"] analogs:["7071316860"] | ||||
2. | 707-76-10270 | [1] | BUSHING Komatsu | 2.11 kg. |
["SN: 50001-UP"] | ||||
3. | 07145-10100 | [2] | SEAL,DUST (KIT) Komatsu China | 0.058 kg. |
["SN: 50001-UP"] | ||||
4. | 07020-00000 | [1] | FITTING,GREASE Komatsu China | 0.006 kg. |
["SN: 50001-UP"] analogs:["YM24761020000", "1756731361", "860010009", "070200000", "R0702000000", "0700000000"] | ||||
5. | 07043-00108 | [1] | PLUG Komatsu | 0.005 kg. |
["SN: 50001-UP"] analogs:["0704320108", "0704350108", "820510607", "YM23871010000", "R0704300108"] | ||||
6. | 707-58-11610 | [1] | ROD Komatsu | 0.000 kg. |
["SN: 50001-UP"] | ||||
7. | 707-76-11130 | [1] | BUSHING Komatsu China | 2.52 kg. |
["SN: 50001-UP"] | ||||
8. | 07145-10110 | [2] | SEAL,DUST (KIT) Komatsu China | 0.054 kg. |
["SN: 50001-UP"] | ||||
9. | 707-71-31670 | [1] | COLLAR Komatsu | 3.922 kg. |
["SN: 50001-UP"] | ||||
10. | 707-35-91640 | [2] | RING,BACK-UP (KIT) Komatsu China | 0.01 kg. |
["SN: 50001-UP"] | ||||
11. | 07000-55150 | [1] | O-RING (KIT) Komatsu China | 0.017 kg. |
["SN: 50001-UP"] analogs:["0700045150"] | ||||
12. | 707-71-61140 | [1] | PLUNGER Komatsu | 1.612 kg. |
["SN: 50001-UP"] | ||||
13. | 721-27-16080 | [1] | HEAD Komatsu China | |
["SN: 52629-UP"] | ||||
14. | 707-88-05020 | [1] | PLATE Komatsu | 0.000 kg. |
["SN: 50001-UP"] | ||||
15. | 707-56-11740 | [1] | SEAL,DUST (KIT) Komatsu | 0.000 kg. |
["SN: 50001-UP"] | ||||
16. | 707-88-36541 | [1] | RING Komatsu | 0.000 kg. |
["SN: 50001-UP"] | ||||
17. | 707-88-05010 | [1] | COLLAR Komatsu China | |
["SN: 50001-UP"] | ||||
18. | 707-56-11820 | [1] | SEAL,DUST (KIT) Komatsu | 0.000 kg. |
["SN: 52629-UP"] | ||||
19. | 707-52-90851 | [1] | BUSHING Komatsu OEM | 0.234 kg. |
["SN: 50001-UP"] analogs:["7075290850"] | ||||
20. | 707-75-11040 | [1] | RING,SNAP Komatsu | 0.03 kg. |
["SN: 50001-UP"] | ||||
21. | 707-51-11732 | [1] | PACKING,ROD (KIT) Komatsu China | |
["SN: 52629-UP"] | ||||
22. | 707-51-11640 | [1] | RING,BUFFER (KIT) Komatsu China | 0.03 kg. |
["SN: 50001-UP"] analogs:["7075111630", "R7075111640"] | ||||
25. | 01010-82010 | [8] | BOLT Komatsu China | |
["SN: 50001-UP"] | ||||
26. | 01011-82015 | [4] | BOLT Komatsu | 0.346 kg. |
["SN: 50001-UP"] analogs:["0101183015", "0101162015", "0101152015", "0104142015", "0101163015"] | ||||
27. | 707-88-75310 | [12] | WASHER Komatsu | 0.022 kg. |
["SN: 50001-UP"] | ||||
28. | 707-36-16580 | [1] | PISTON Komatsu | 7.121 kg. |
["SN: 50001-UP"] | ||||
29. | 01310-01216 | [1] | SCREW Komatsu | 0.02 kg. |
["SN: 50001-UP"] analogs:["0132001216", "0131021216"] | ||||
30. | 707-44-16180 | [1] | RING,PISTON (KIT) Komatsu China | 0.13 kg. |
["SN: 50001-UP"] analogs:["7074416080"] | ||||
31. | 707-39-16120 | [2] | RING,WEAR (KIT) Komatsu OEM | 0.072 kg. |
["SN: 50001-UP"] | ||||
32. | 707-44-16910 | [2] | RING Komatsu China | 0.09 kg. |
["SN: 50001-UP"] | ||||
33. | 07001-05100 | [2] | RING,BACK-UP (KIT) Komatsu OEM | 0.012 kg. |
["SN: 50001-UP"] | ||||
34. | 07000-55100 | [1] | O-RING (KIT) Komatsu China | 0.015 kg. |
["SN: 50001-UP"] analogs:["0700045100"] | ||||
35. | 700-11-31980 | [1] | PLATE, NAME Komatsu China | |
["SN: 50001-UP"] | ||||
36 | 707-86-12550 | [1] | TUBE,L.H. Komatsu | 5.36 kg. |
["SN: 50001-UP"] | ||||
36 | 707-86-12560 | [1] | TUBE,R.H. Komatsu China | |
["SN: 50001-UP"] | ||||
37 | 707-86-00930 | [1] | TUBE,L.H. Komatsu | 0.000 kg. |
["SN: 52629-UP"] | ||||
37 | 707-86-00940 | [1] | TUBE,R.H. Komatsu | 0.000 kg. |
["SN: 52629-UP"] | ||||
38 | 707-87-14700 | [1] | PLUG Komatsu | 0.000 kg. |
["SN: 52629-UP"] | ||||
39 | 07002-63034 | [1] | O-RING (KIT) Komatsu | 0.001 kg. |
["SN: 52629-UP"] analogs:["7081W28920"] | ||||
40 | 07372-21060 | [8] | BOLT Komatsu | 0.045 kg. |
["SN: 50001-UP"] analogs:["0737251060"] | ||||
41 | 01643-51032 | [8] | WASHER Komatsu | 0.17 kg. |
["SN: 50001-UP"] analogs:["R0164351032"] | ||||
42 | 07000-53035 | [2] | O-RING (KIT) Komatsu China | 0.03 kg. |
["SN: 50001-UP"] analogs:["0700043035"] | ||||
43 | 707-88-25370 | [1] | BRACKET,L.H. Komatsu China | |
["SN: 50001-UP"] | ||||
43 | 707-88-25380 | [1] | BRACKET,R.H. Komatsu China | |
["SN: 50001-UP"] | ||||
44 | 707-88-21660 | [1] | BAND Komatsu China | |
["SN: 50001-UP"] | ||||
45 | 07372-21240 | [4] | BOLT Komatsu | 0.052 kg. |
["SN: 50001-UP"] analogs:["0737201240"] | ||||
46 | 01643-51232 | [4] | WASHER Komatsu | 0.024 kg. |
["SN: 50001-UP"] | ||||
47 | 07283-33442 | [1] | CLIP Komatsu | 0.094 kg. |
["SN: 50001-UP"] | ||||
48 | 01643-31032 | [2] | WASHER Komatsu | 0.054 kg. |
["SN: 50001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | ||||
49 | 01597-01009 | [2] | NUT Komatsu | 0.011 kg. |
["SN: 50001-UP"] | ||||
50 | 01010-81025 | [2] | BOLT Komatsu | 0.36 kg. |
["SN: 50001-UP"] analogs:["0101051025", "0101651025", "801015109"] | ||||
52 | 707-88-33040 | [2] | CAP Komatsu | 0.02 kg. |
["SN: 50001-UP"] | ||||
53 | 07371-31049 | [4] | FLANGE,SPLIT Komatsu | 0.12 kg. |
["SN: 50001-UP"] analogs:["0737121049"] | ||||
54 | 07372-21035 | [8] | BOLT Komatsu | 0.033 kg. |
["SN: 50001-UP"] | ||||
707-99-65210 | [2] | SERVICE KIT Komatsu China | ||
["SN: 52629-UP"] |$65. |
